BF9 SET MEDICINE & AESTHETIC

Description

Protect yourself, your staff, and your patients with TBH Extraction- and
Filtration Systems.
In the laser surgery aerosols will be generated with a particle size of
0,1µ – 2µm. Those laser aerosols (LGAC = Laser Generated Air- boune
Contaminants) consist of serveral parts of human fabric. This one being
removed from the fabric explosively as a steam or gas mixture.
Dangers start out from microorganisms like bacteria, viruses and fungi.
These have a particle size of smaller than 2µ and can be completely
breathing in and therefore are deposited in the lungs. There is an acute
infection risk with that for the operating staff and patient.
Please keep in mind, that the surgery facemask doesn’t offer protection
in front of air-supported particles. Up to 25% of the respiratory is
passing the facemask! It was developed around the patient to protect
him from an airborne infection by the operation staff.
AREAS OF APPLICATION:
. Cosmetic surgery
(Skin removal, Hair removal,
Alteration of epidermis)
. HF surgery
. Dental medicine
. Endoscopy
THE SYSTEM INCLUDES NUMEROUS FEATURES:
. Three optional extractors enables different processes and applications
. Electronic features and display functions
. Differential pressure indicator for monitoring the saturation filters
. Easy and clean filter change from the top
. Optimize convenience by using the optional foot switch

FUNCTIONAL PRINCIPLE
The contaminated air is collected by the collection unit (extractor hood, suction arm, hose, etc.) and transported
into the filter unit directly or through a pipe or flexible hose. In the filter unit, the contaminant particles
are filtered into different filter levels according to their size and in downstream molecular sieve (activated carbon
Filter) the gaseous pollutants are largely removed. Afterwards the purified air can either be circulated
back into the work area or diverted outdoors through an exhaust duct. Recirculating the air in the work area is
a way to easily reduce energy costs.

THREE OPTIONAL EXTRACTORS ENABLES DIFFERENT
PROCESSES AND APPLICATIONS
Extraction Tube (included in our standard model)
The extraction tube is generally used for smoke and debris where there is
no grid cover required.
1. Extraction Tube with integrated protection grid to avoid extraction of
foreign objects.
The grid is a convex design to reduce the risk of material being sucked
onto the grid surface during a procedure, blocking air flow. In addition,
the protective grid prevents the extraction of foreign objects – non-intentionally
or intentionally – that might block the extraction arm (optional).
2. A reducer fitting that allows for the attachment of smaller diameter hoses
(10.5 – 22 mm).
The shown reducer can be attached at the end of the extraction arm. This
enables the connection of electrosurgical pencils and there smoke evacuation
hand piece. That gives you the opportunity to use one extraction
system for all your procedures and applications. These smaller hoses are
often used to keep accessibility and visibility at a maximum (optional).

3. Transparent extraction hood enables a wider coverage of pollution
The extraction hood – dimension of 330×240 mm – enables a wider coverage
of pollution. The transparent design – polycarbonate – allows a
free view for the surgeon to the working surface (optional).
4. Transparent extraction hood enables a wider coverage of pollution
The extraction hood – dimension of 245×220 mm – enables a wider coverage
of pollution. The transparent design – polycarbonate – allows a
free view for the surgeon to the working surface (optional).
5. Transparent extraction hood enables a wider coverage of pollution
The extraction hood – diameter 385 mm – enables a wider coverage of
pollution. The transparent design – polycarbonate – allows a free view for
the surgeon to the working surface (optional).

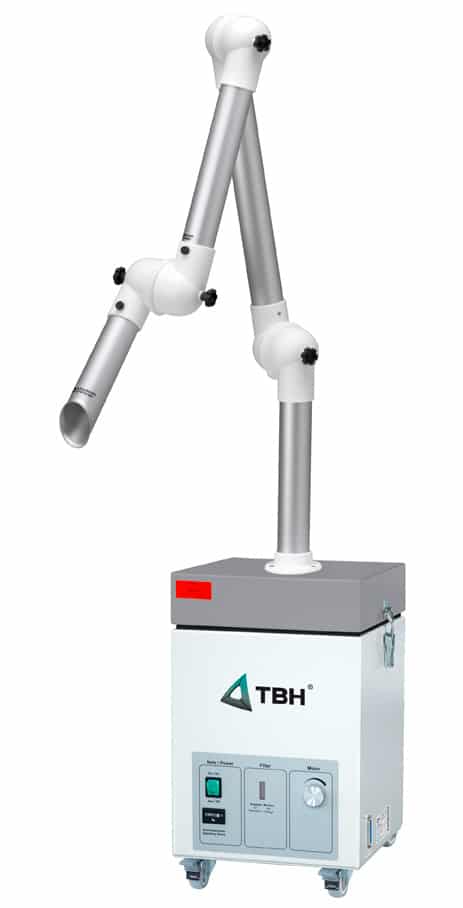

TECHNICAL SPECIFICATIONS UNIT BF9 SET-D
Unimpeded air flow rate m³/h max. 220
Effective air flow rate m³/h 20-200
Max. static pressure Pa 14000
Voltage V 230
Frequency Hz 50/60
Power input kW 0.7
Protection class – 1 1
Motor and drive system – brush motor brushless motor
Noise level db(A) approx. 64
Serial interface D-sub 25-pin
Weight kg approx. 24
Dimensions (HxWxD) mm 510x300x300
Intake socket N/D 50 count 2
Extraction Arm System 50
with extraction tube mm 850
Colour (cabinet) RAL 7035
Colour (top cover) RAL 7037

AREAS OF APPLICATION:
. Cosmetic surgery
(Skin renewal, Hair removal,
Alteration of epidermis)
. HF surgery
. Dental medicine
. Endoscopy
FILTER CONFIGURATION
Pre-filter mat (F5) ü ü
2-stage filter (particle filter (H13)+
activated carbon filter) ü ü
INCLUDES:
. Complete unit with the interior filter accessories
(incl. Exhaust arm)
. additional pre-filter mat set (3 pcs)
. 4 wheels for mobile use
. Power cable
