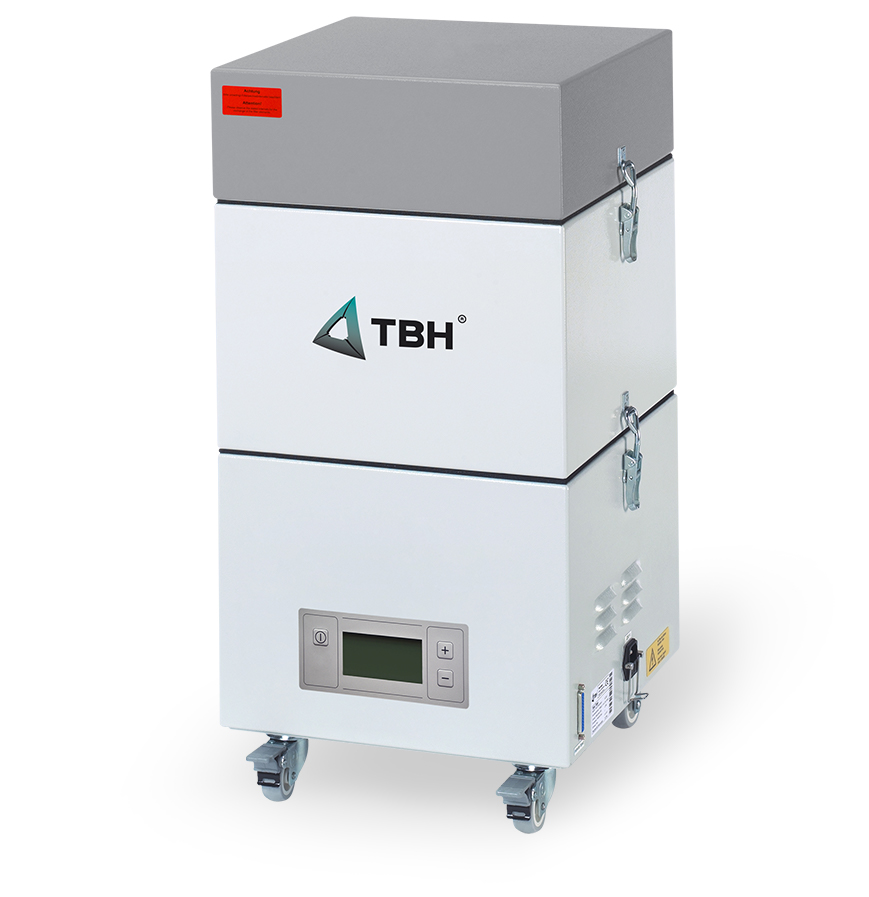

Extraxtion and filtration mobile unit BF100

1.900,00 (+Tax)

Extraxtion and filtration mobile unit BF series for solderin, laser processing, processes for working with adhesiv, processes for working with vapours/gases…Vakuum tehnik sesalna tehnologija Šrot d.o.o.

Available on back-order

Quantity:

SKU: TBH-90302 Categories: ,

Description

APPLICATION
The products of the BF-series (BASIC FILTRATION) were specially designed
as basic models and include all of the essential functions of an
extraction and filter system, combined with an excellent price-performance
ratio.
The devices are available with different motor concepts, filter equipment
and operating options. The TBH modular device design and all of its
advantages were also used as the focus during the development of this
device series.
AREAS OF APPLICATION:
. Soldering (single/multi-site extraction)
. Laser processing (source extraction, compact lasers)
. Processes for working with adhesive/moist dusts
. Processes for working with vapours/gases
THE SYSTEM INCLUDES NUMEROUS FEATURES:
. Modular design
. Simple filter replacement
. Differential pressure indicator for monitoring the saturation filters
. Products of the BF-series with blowers are particularly energy-saving
. Control electronics with basic functions

FUNCTIONAL PRINCIPLE
The contaminated air is collected by the collection unit (extractor hood,
suction arm, hose, etc.) and transported into the filter unit directly or
through a pipe or flexible hose. In the filter unit, the contaminant particles
are filtered into different filter levels according to their size. Filter
units that are equipped with a molecular sieve (for example activated
carbon filters/BAC) remove the majority of gaseous contaminants. Afterwards
the purified air can either be circulated back into the work area or
diverted outdoors through an exhaust duct. Recirculating the air in the
work area is a way to easily reduce energy costs

MODULAR DESIGN
The service handling is a big PLUS of the modular design concept. In
case of servicing, only the malfunctioning motor module (and not the
entire system) has to be examined. A replacement module can also be
provided during the repair period. This reduces the costs for any production
downtime that may be incurred.
SIMPLE FILTER REPLACEMENT
The filter is replaced by simply removing it from above. This ensures simple, clean filter replacements for the
employees or maintenance service staff.
FILTER MONITORING
The system includes a differential-pressure indicator monitoring the filter-saturation indicator (Figure 1,(1)
Page 5). This shows when a defined value is reached to indicate that the filters need replacing, since the extraction
level dissipates with increasing filter saturation.
ENERGY-SAVING
The use of special blowers in the BF5 and BF10 allow for particularly energy-saving system configurations
(< 0.2 kW).

BF-SERIES WITH TURBINE
These devices of the BF-series generate especially high negative pressure. This makes them ideal for extracting
with small collection elements or even the customer’s own equipment or through long extraction ducts.
This also allows for decentralised positioning of the extraction system for multiple extraction sites (e.g. manual
workstations). If you need an effective design for special applications, please contact the TBH sales team.
BF-SERIES WITH BLOWER
These devices of the BF-series have a compact design and are particularly energy-saving. They are especially
suited as table units for single or double workstations with a suction arm in areas with soldering fumes
(for example). Due to the working concept of these devices, you always have to make sure that the intake
cross section is large enough (in contrast to the LN-series).

CONTROL ELECTRONICS WITH BASIC FUNCTIONS
The BF-series systems feature INSPIRE control electronics
in its basic configuration:
. Switching between run/standby
. Manual adjustment of the rotation speed
. Filter-saturation indicator of the extraction system
. Visual and acoustic display of the filter saturation
. Fault display and notification
INTERFACE:
. System start/stop
. Warning at a filter saturation of 75%
. Preselection of run/standby at the system start-up
The extraction and filter system can thus easily be integrated
into the customer system.
OPERATING ELEMENTS:
A) Switching between run/standby
B) Manual adjustment of the rotation speed
1) Filter-saturation indicator
2) System status indicator
3) Performance-setting indicator/
operating-hours meter
4) Temperature and turbine-malfunction
indicator (except of BF 9)
5) Filter status indicator

INDUSTRIAL SAFETY AND HEALTH PROTECTION
In order to meet our customers’ safety requirements even better, Vakuum tehnik
has complemented its product range by different extraction and filter
systems specifically tested by the German Institut für Arbeitsschutz
(IFA) [Institute for Occupational Safety and Health] in accordance with
DIN ISO 15012-1 (2013).
ADSORPTION OF GASEOUS SUBSTANCES
Two complimentary filter materials are used for the adsorption of gaseous substances. The activated carbon
facilitates the physical adsorption process while the BAC granules facilitate a chemical adsorption process.
Neutralisation of specific gaseous substances is achieved through chemical binding with the reaction substance
that is deposited on the carrier material. Because the physical and chemical adsorption processes are
complementary, an extremely wide range of gases and odours can be collected.
Activated carbon BAC granules Activated carbon/BAC

BF 100

Technical data Unit BF 100
Engine Brushless
Weight kg 40
Height mm 700
Width mm 350
Depth mm 350
Color (casing) 7035
Filter configurations BF 100
Pre-filter mat (M5) yes
Particle filter (H13) yes
Activated carbon/BAC filter yes





Additional information

Weight 40 kg
