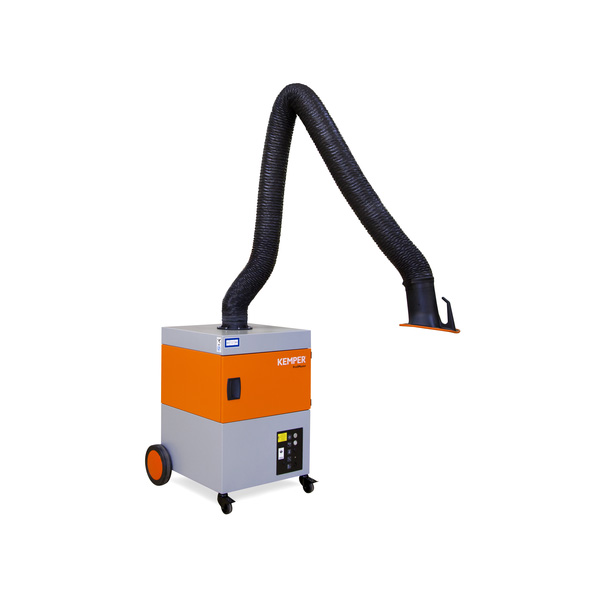

ProfiMaster Welding Smoke Filter Unit

Description

Welding smoke filter unit in robust quality with high capacity filter

ProfiMaster is a robust smoke extraction filter unit for occasional to frequent use with low to medium amounts of dust. The high capacity disposable filter can easily be changed. The rotating and swiveling exhaust hood enables use in a 360-degree radius and ensures only few adjustments during welding.

Applications:

• Also suitable for high-alloy steel
• Low to medium levels of smoke and dust
• Occasional to frequent use

Benefits:

• Safe operation by rotation field control
• Maintenance door allows easy filter change
• Exhaust arm requires less adjustment due to exhaust hood design
• Increased safety due to filter monitoring

Properties:

• Automatic Start/Stop (optional)
• Exhaust arm up to 4 m
• Rotating exhaust hood

Accessories:

• Automatic Start/Stop

Tehnical data:

1. Filter

• Filter stages: 2
• Filter method: Disposable filter
• Filter surface: ca. 17 m²
• Type of filter: Filter cassette
• Filter material: Non-woven fibre
• Filter efficiency: > 99.5 %
• Filterclass: E12
• Additional filters: Pre-filter

2. Basic data:

• Extraction capacity: 1,100 m³/h
• Dimensions (w x d x h): 785 x 730 x 950 mm
• Weight: 95 kg
• Motor power: 1.1 kW
• Power supply: 3 x 400 V / 50 Hz
• Rated current: 2.3 A
• Noise level: 70 dB(A)

3. Additional information:

• IFA-Certification: W3-Approved
• Fan type: Radial fan
• Quantity of extraction arms: 1
• Exhaust arm type: flexible exhaust arm
• Diameter extraction arm: 150 mm
• Length of exhaust arm: 3 m
