Welding Fume Exhaust Set 3 Joints

Description

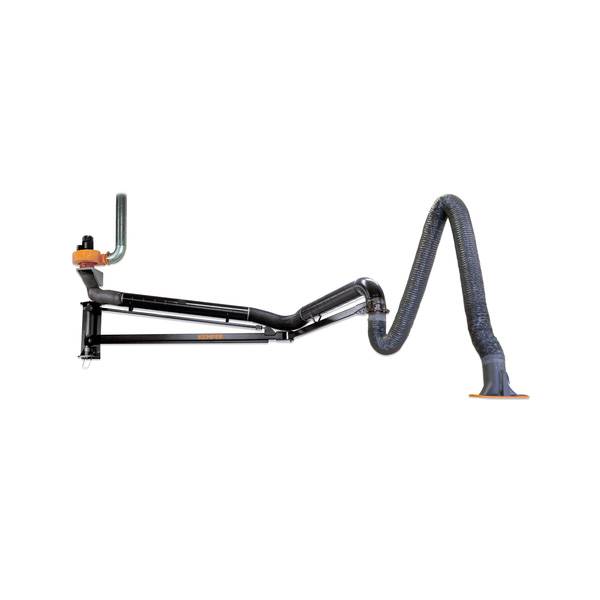

Welding smoke exhaust set with extension boom arm, exhaust arm and fan

The welding fume exhaust kit consisting of boom, exhaust arm and fan is a particularly simple and cost-effective solution anywhere where air filtration is not essential. Due to the length, flexible, fast work is very easy, even with large workpieces. It is suitable for high levels of smoke and dust such as welding fumes, gases, vapours, light dusts or vehicle exhaust fumes in non-stop operation.

Applications:

• High levels of smoke and dust
• Non-stop operation
• Where filtration is not essential
• Welding fumes, gases, vapours, light dusts, car exhaust fumes
• Large workpieces

Benefits:

• Reduced tripping hazard by attaching tools or wire feed unit to the boom with carriage
• Very quiet due to housing of cast silumin
• 40% less adjustment of the exhaust arm needed due to exhaust hood design
• User-friendly due to particularly smooth movement of the hood with one hand
• Arm keeps position due to self-supporting design
• Flexible, fast work due to long reach

Properties:

• 360 degrees rotating exhaust hood with damper
• Self-supported by internal springs
• As a flexible exhaust arm: Polyester fabric hose, PVC coated with welded steel wire spiral
• As a rigid metal tube arm: Powder-coated aluminum tube, three flexible hose sections
• Fan made of spark-proof cast silumin
• Boom with 50 kg load capacity
• Boom with integrated C-rail with carriage

Variants:

• Various arm lengths and versions
• Other voltages
• Scope of suplly
• Fan
• Exhaust arm with hood
• Boom
• Motor protection switch
• Set of connecting material
• Connecting pipe with outlet

Technical Data

1. Basic data:

• Extraction capacity: 1,000 m³/h
• Weight: 181 kg
• Motor power: 1.1 kW
• Power supply: 3 x 400 V / 50 Hz
• Rated current: 2.3 A
• Noise level: 73 dB(A)

2. Additional information:

• Fan type: Radial fan
• Exhaust arm type: flexible exhaust arm
• Diameter extraction arm: 150 mm
• Length of exhaust arm: 7 m
