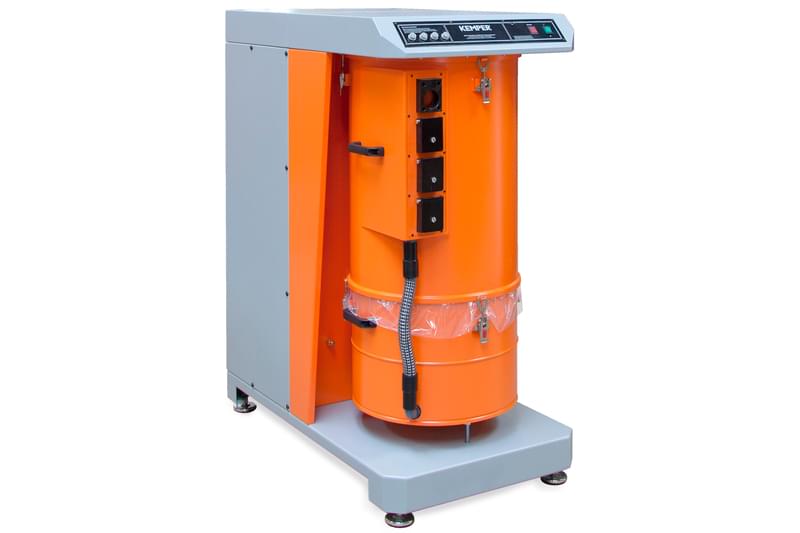

Welding Fume Extraction unit VacuFil 500

Description

High vacuum welding smoke extraction unit for up to four workstations

The high-vacuum suction and welding smoke extraction filter unit VacuFil 500 for high levels of smoke and dust is ideal for non-stop operation due to automatic filter cleaning. A side channel compressor to create negative pressure ensures robust performance for industrial users. In addition to up to four individual work stations, depending on the version, it can also be connected to a central pipe system.

Applications:

• High levels of smoke and dust
• Non-stop operation
• Torch extraction, robot extraction
• Suction nozzles or high vacuum exhaust arms

Benefits:

• High efficiency due to automatic filter cleaning
• Best health protection for employees by use of KemTex® ePTFE filter cartridges with surface filtration
• Great flexibility in version with four separate connections
• Uninterrupted continuous operation due to automatically controlled filter cleaning

Properties:

• Automatic filter cleaning, pressure-controlled
• Dust collection container
• Filter monitoring
• Side channel compressor
• KemTex® ePTFE filter cartridges
• 4 x 45mm or 1 x 100mm hose/duct connector

Accessories:

• Automatic Start/Stop
• Suction hose
• Slot and funnel nozzle
• Connector for welding torches

Variants:

• Other voltages

Technical Data:

1. Filter:

• Filter stages: 1
• Filter method: Cleanable filter
• Filter cleaning method: Rotating nozzle
• Filter surface: ca. 10 m²
• Type of filter: Filter cartridge
• Filter material: ePTFE-membrane
• Filter efficiency: > 99.9 %
• Dust classification: M

2. Basic data:

• Extraction capacity: 500 m³/h
• Dimensions (w x d x h): 655 x 1,200 x 1,370 mm
• Weight: 250 kg
• Motor power: 5,5 kW
• Power supply: 3 x 400 V / 50 Hz
• Rated current: 11 A
• Noise level: 74 dB(A)

3. Additional information:

• Fan type: Side channel blower
• Compressed air supply: 5 – 6 bar
• Capacity Dust collection container: 40 l
